FORD EEC-V INFO

I am hoping to provide some insight to the workings of the Ford EEC-V engine management computer.  This will always be a "works in progress".  This page has no connection whatsoever to Ford Motor Company, Motorola Semiconductors, or INTEL semiconductor.

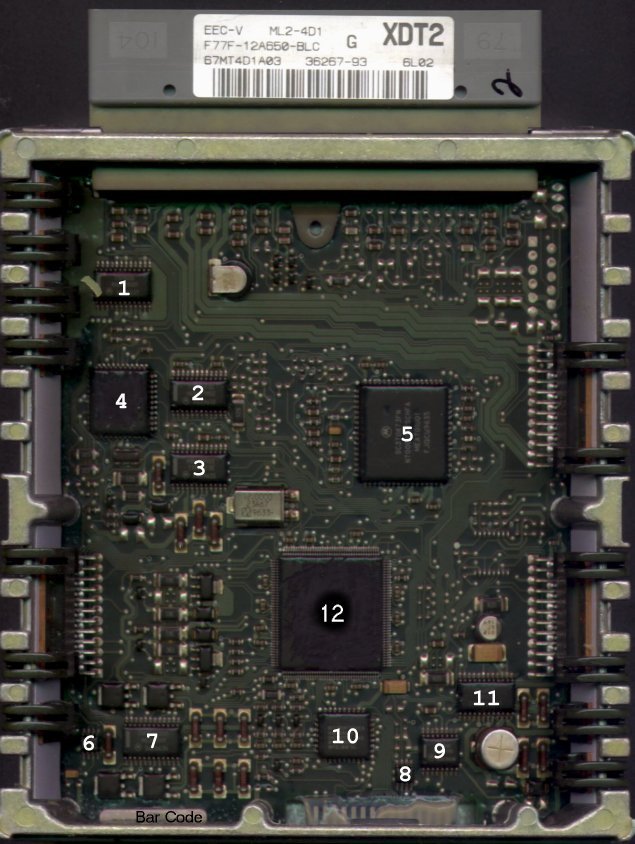

EEC-V as used in a 1997 Ford Explorer 5.0L V8
Computer code for this particular computer is XDT2
At the bottom is the service port.
At the top is the Harness connector (104 pin)

Bar Code label in lower left corner reads:
01980719












CHIP MARKINGS
1:  71016SB              24 pin SOIC
      MAA45U01        Motorola		 2:  710014FSE                   24 pin SOIC
      MDB67M02                Motorola
3:  MBA68M02        24 pin SOIC
     710015FSE           Motorola		 4:  DIS  8  ML2                 44 pin PLCC
     IDENTIFIED!!  DIS Ignition Controller
5:  SC370674FN       68 pin PLCC
     N700013BFSCHFA    MEA701U01
     Motorola		 6:  LM2904                        8 pin SOIC
     Signetics/National
7:  71012SE001         24 pin SOIC
      MCA61U01         Motorola		 8:  CDA1M01                    8 pin SOIC
     CS639J                          Unk Manufacturer
9:  71004SL               16 pin SOIC
      MAA17T03         Motorola

10: N70005FWCHCA       32 pin PLCC
      FoMoCo
      Intel C '91 '95

IDENTIFIED!!  Intel 28F010 FLASH PROM
11: 70068FB               24 pin SOIC
       885S03
       CS9631S   545     Unk Manufacturer		 12:  EPIC   AM01BC         160 pin QFP
     N7500230FSCGMD
     Motorola
IDENTIFIED!!  EPIC Co-Processor




Any info/questions email me!
